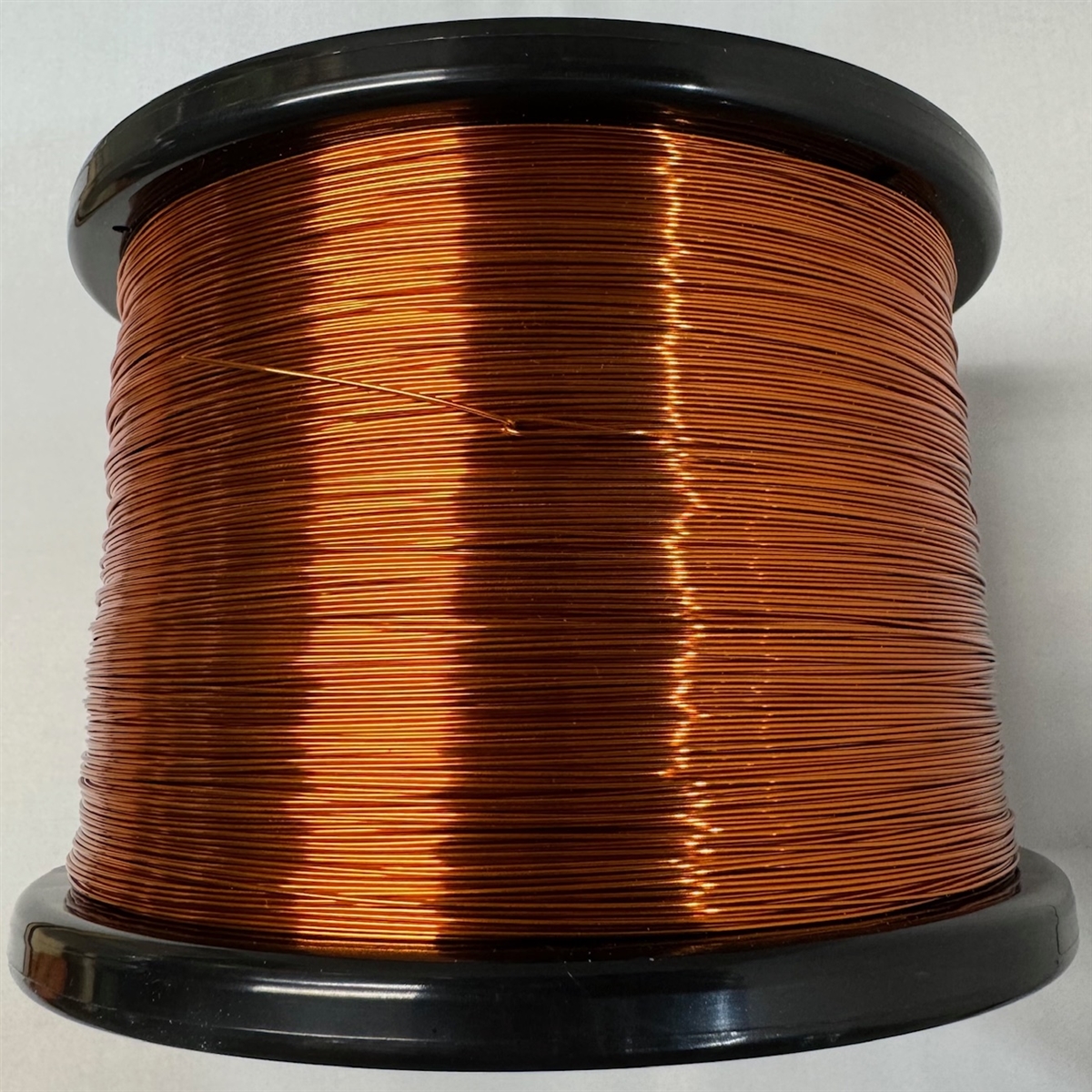

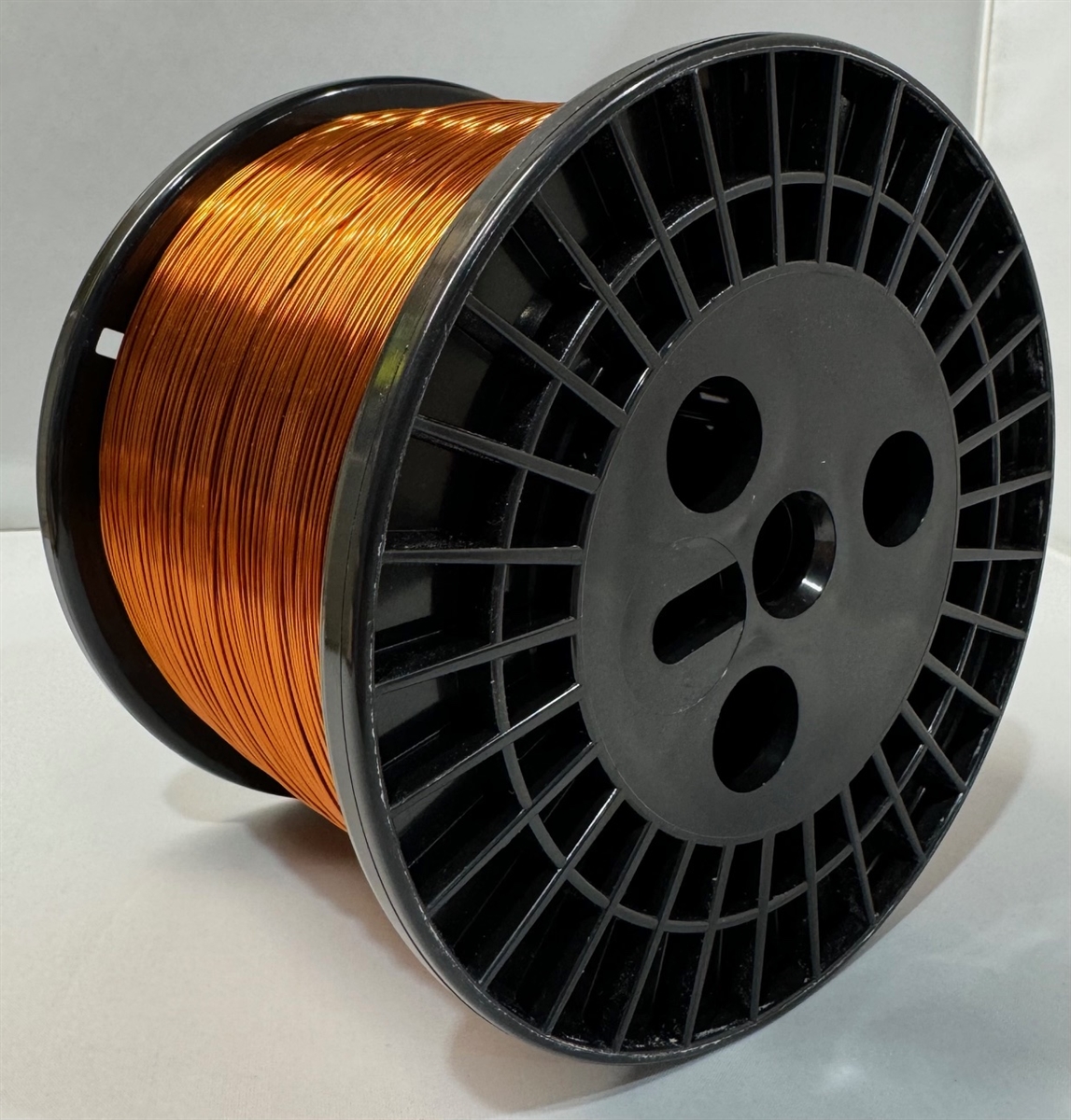

21 awg. SINGLE GP/MR-200 MW35C/200C
This GP/MR-200 copper magnet wire is single film insulated / coated with polyamide-imide, polyester and is engineered to enhance dielectric breakdown voltage, adhesion, scrape abrasion, and chemical resistance with excellent thermal properties.
With a temperature rating of 200°, the MW35C wire is suitable for a wide range of applications. Including electric motors, small coils, dry-type transformers, automotive and power tool motors, as well as large coils.
Available in spool weights of approximately:
10 lbs. and below
|
Spool Size
|
6" X 4” spool
|
|
Nominal Wire Weight
|
10 lbs. and below
|
|
Film Build
|
Single
|
|
Color
|
Natural (clear)
|
|
Size/Gauge
|
21 AWG
|
|
Insulation
|
Polyester/Polyamide-imide
|
|
Metal
|
Copper
|
|
Nema MW1000
|
MW35C
|
|
FT/LB
|
401 FT/LB
|
|
Temperature Class
|
200C
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Temp: 200°
Insulation Properties: Polyester/Polyamideimide‐200 is a multi‐purpose film insulation, which has a modified polyester base coat and a polyamide-imide topcoat.
Round
Meets Standards:
NEMA: MW35C
Superior dielectric values
Excellent unilateral and repeated scrape abrasion resistance
Excellent heat shock resistance
High moisture and chemical resistance
|
|
|
|
|
|
|
