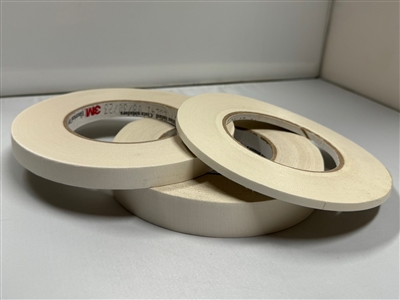

TAPE 3M# 27 GLASS CLOTH WHITE 3/16" X 60 YRD ROLL
| | Dielectric Breakdown |  | 3000 V | | | Adhesive Material | | Thermosetting Rubber | | | Backing Thickness | | 5.0 mils (0, 125 mm) | | | Breaking Strength | | 150 lbs/in (252 N/10 mm) | | | Color | | White | | | Dielectric Breakdown | | 5500 Volt | | | Elongation | | 5% | | | Adhesion to Steel | | 30 oz/in (3.3 N/10 mm) |
| | |
| | | Length | | 60 Linear Yard | | | Maximum Operating Temperature (Celsius) | | 150 Degree Celsius |
| | |
| | | Printed Tape | | No | | | Recognized under UL Standard 510 | | Yes | | |
| |
|
| | |
| | | Thickness | | 7.0 mils (0, 177 mm) | | |
| | | | | Width | | 3/16 Inch |
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
3M # 27 Glass Cloth Electrical Tape is a 7-mil insulating glass cloth tape. This tape is designed to operate in 600-volt dry applications requiring high mechanical strength and resistance to high temperatures. This glass cloth is specially treated and prepared to provide corrosion-free protection. The glass cloth will not shrink, rot or burn, has high tensile strength and is printable.
|
|
|
|
|
|
|
